醫療設備系列 53 Series （系列）
2021-08-19 894

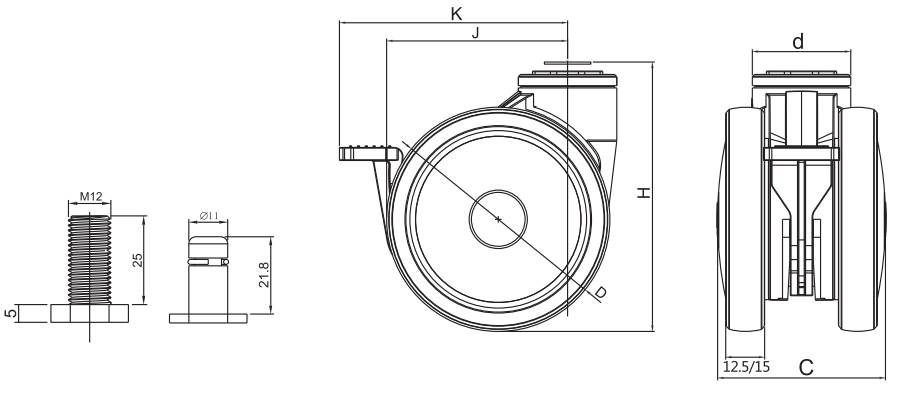

產品 Product | 型號 Model | 輪徑 Wheel Diameter(mm) | 承重 Load Capacity (KG) | 安裝高度 Height (mm) | 輪子轉動半徑 Swivel Radlius (mm) | 最大轉動半徑 Brake swinvel Radusimm) | 總輪寬 Wheel Width (mm) | 輪軸 Bearing |
 | 53-WP1-042G75 | 75 | 70 | 94 | 61.5 | 60 | 雙軸承 double bearing | |
| 53-WP1-042G100 | 100 | 90 | 126 | 81 | 75 | |||
| 53-WP1D-042G75 | 75 | 70 | 94 | 61.5 | 769 | 60 | ||
| 53-WP1D-042G100 | 100 | 90 | 126 | 81 | 102 | 75 | ||
 | 53-WP2-042G75 | 75 | 70 | 90 | 61.5 | 60 | 雙軸承 double bearing | |
| 53-WP2-042G100 | 100 | 90 | 121 | 81 | 75 | |||
| 53-WP2D-042G75 | 75 | 70 | 90 | 61.5 | 79 | 60 | ||
| 53-WP2D-042G100 | 100 | 90 | 121 | 81 | 102 | 75 | ||
 | 53-WP5-042G | 75 | 70 | 87 | 61.5 | 60 | 雙軸承 double bearing | |
| 53-WP5D-042G | 75 | 70 | 87 | 61.5 | 79 | 60 | ||
