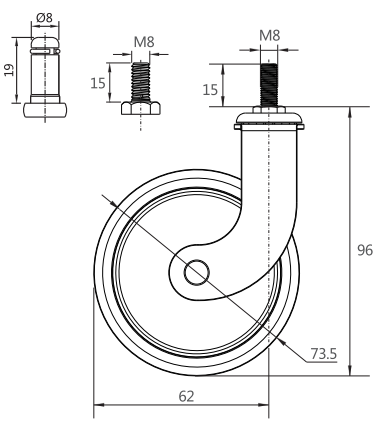

型號 Model | 輪徑 Wheel diameter | 承重 Lood-capaciy | 安裝高度 Installation height | 輪子轉動半徑 Radius of gyration | 絲桿規格 Threaded stem size | 插桿規格 Inserted rod | 輪寬 whell width | 輪軸 Whell axle |
86-CU2-433X75 | 73.5 | 12 | 96 | 62 | M8X15 M8X20 | 11 | 滑動軸 Plain bearing | |
86-CU2C-334X75 | ||||||||
86-CU5-443X75 | Φ7X38 | |||||||
86-CU5C-443X75 |
