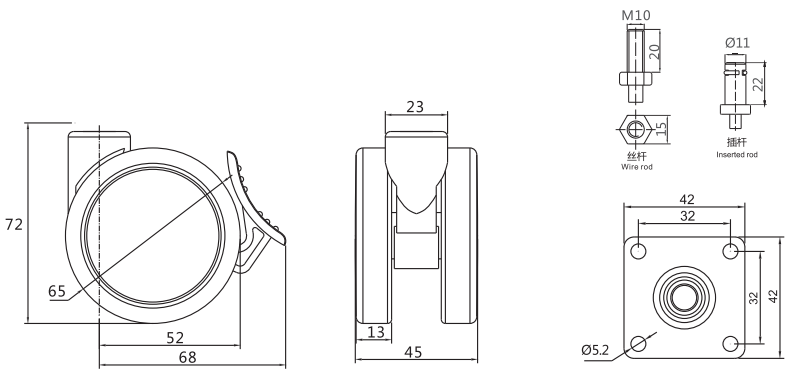

型號 Model | 輪徑 Wheel diameter | 承重 Lood-capaciy | 安裝高度 Installation height | 輪子轉動半徑 Radius of gyration | 最大轉動半徑 Maximum radius of gyration | 絲桿規格 Threaded stem size | 插桿規格 Inserted rod | 輪寬 whell width | 輪軸 Whell axle |
80-WP1-223B65 | 65 | 28 | 77 | 52 | 68 | 45 | 滑動軸 Plain bearing | ||
80-WP2-223B65 | 72 | M10x20 | |||||||
80-WP5-223B65 | Φ11x22 | ||||||||
80-WP1E-223B65 | 77 | ||||||||
80-WP2E-223B65 | 72 | M10x20 | |||||||
80-WP5E-223B65 | Φ11x22 |
