82系列 82 Series
2021-08-19 792

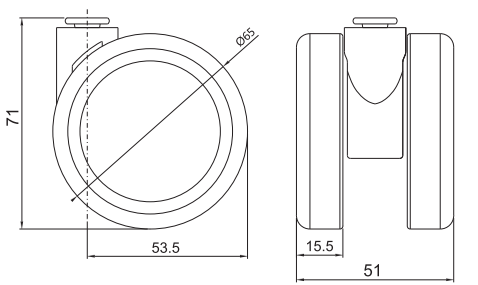

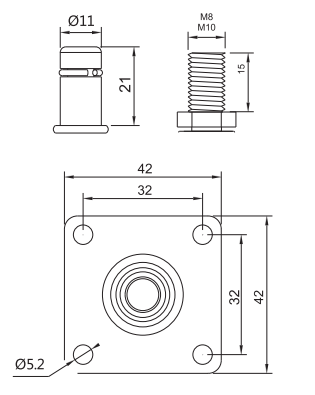

型號 Model | 輪徑 Wheel diameter | 承重 Lood-capaciy | 安裝高度 Installation height | 輪子轉(zhuǎn)動半徑 Radius of gyration | 絲桿規(guī)格 Threaded stem size | 插桿規(guī)格 Inserted rod | 輪寬 whell width | 輪軸 Whell axle |
| 81-CU1-263X65 | 65 | 25 | 71 | 53.5 | M8x15 M10x15 | Φ11x21 | 45 | 滑動軸 Plain bearing |
| 81-CU2-263X65 | ||||||||
| 81-CU5-263X65 |
