家具系列 71 Series （系列）
2021-08-19 1466

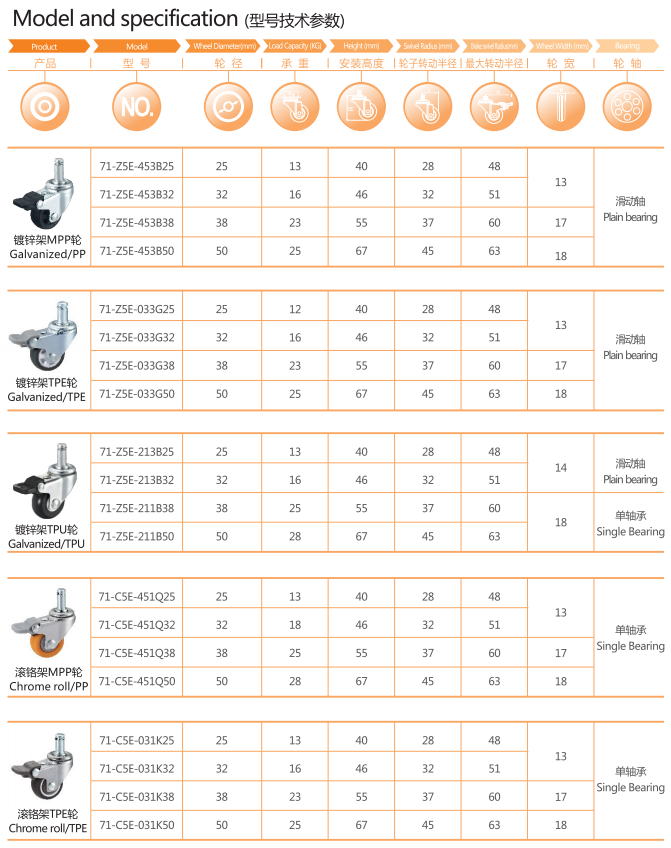

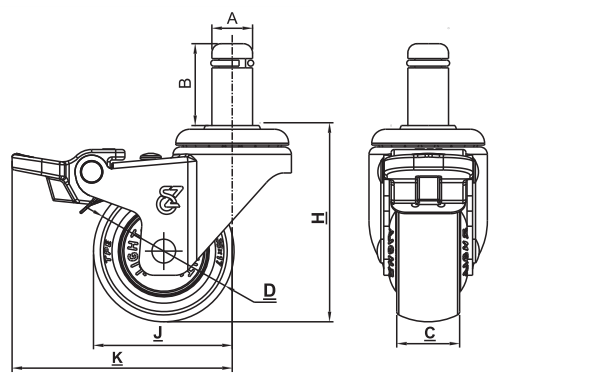

| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Radius (mm) | Brake swivel Radius(mm) | Wheel Width (mm) | Bearing |
| 產(chǎn)品 | 型號 | 輪徑 | 承重 | 安裝高度 | 輪子轉(zhuǎn)動半徑 | 最大轉(zhuǎn)動半徑 | 輪寬 | 輪軸 |
鍍鋅架MPP輪 Galvanized/PP | 71-Z5E-453B25 | 25 | 13 | 40 | 28 | 48 | 13 | 滑動軸 Plain bearing |
| 71-Z5E-453B32 | 32 | 16 | 46 | 32 | 51 | |||
| 71-Z5E-453B38 | 38 | 23 | 55 | 37 | 60 | 17 | ||
| 71-Z5E-453B50 | 50 | 25 | 67 | 45 | 63 | 18 | ||
鍍鋅架TPE輪 Galvanized/TPE | 71-Z5E-033G25 | 25 | 12 | 40 | 28 | 48 | 13 | 滑動軸 Plain bearing |
| 71-Z5E-033G32 | 32 | 16 | 46 | 32 | 51 | |||
| 71-Z5E-033G38 | 38 | 23 | 55 | 37 | 60 | 17 | ||
| 71-Z5E-033G50 | 50 | 25 | 67 | 45 | 63 | 18 | ||
鍍鋅架TPU輪 GalvanizedTPU | 71-Z5E-213B25 | 25 | 13 | 40 | 28 | 48 | 14 | 滑動軸 Plain bearin |
| 71-Z5E-213B32 | 32 | 16 | 46 | 32 | 51 | |||
| 71-Z5E-213B38 | 38 | 25 | 55 | 37 | 60 | 18 | 單軸承 Single Bearing | |
| 71-Z5E-213B50 | 50 | 28 | 67 | 45 | 63 | |||
滾鉻架MPP輪 Chrome roll/PP | 71-C5E-451Q25 | 25 | 13 | 40 | 28 | 48 | 13 | 單軸承 Single Bearing |
| 71-C5E-451Q32 | 32 | 18 | 46 | 32 | 51 | |||
| 71-C5E-451Q38 | 38 | 25 | 55 | 37 | 60 | 17 | ||
| 71-C5E-451Q50 | 50 | 28 | 67 | 45 | 63 | 18 | ||
滾鉻架TPE輪 Chrome roll/TPE | 71-C5E-031K25 | 25 | 13 | 40 | 28 | 48 | 13 | 單軸承 Single Bearing |
| 71-C5E-031K32 | 32 | 16 | 46 | 32 | 51 | |||
| 71-C5E-031K38 | 38 | 23 | 55 | 37 | 60 | 17 | ||
| 71-C5E-031K50 | 50 | 25 | 67 | 45 | 63 | 18 |
