家具系列 72 Series （系列）
2021-08-19 1474

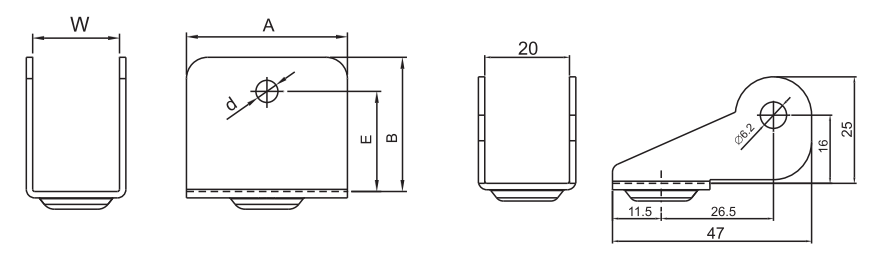

| 尺寸 | 安裝方式 | 底面板尺寸（AxB）mm | 底面板孔位尺寸（G）mm | 側(cè)面板尺寸（ExF）mm | 側(cè)面板孔位尺寸（LxMxN）mm | 孔尺寸 (d) mm |
| 1寸 1.25寸 | L型底板 | 43x18 | 34 | 33x25 | 10x9x20 | 5.2 |
1.5寸 2寸 | 49x21 | 40 | 39x25 |

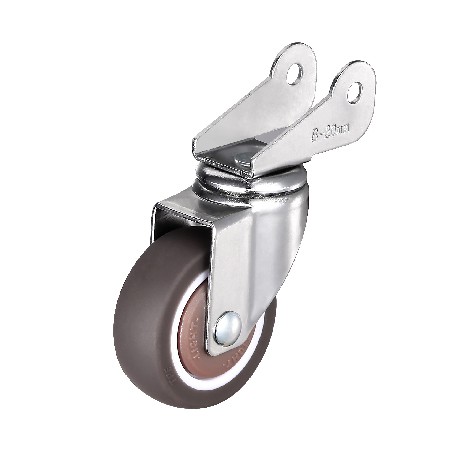

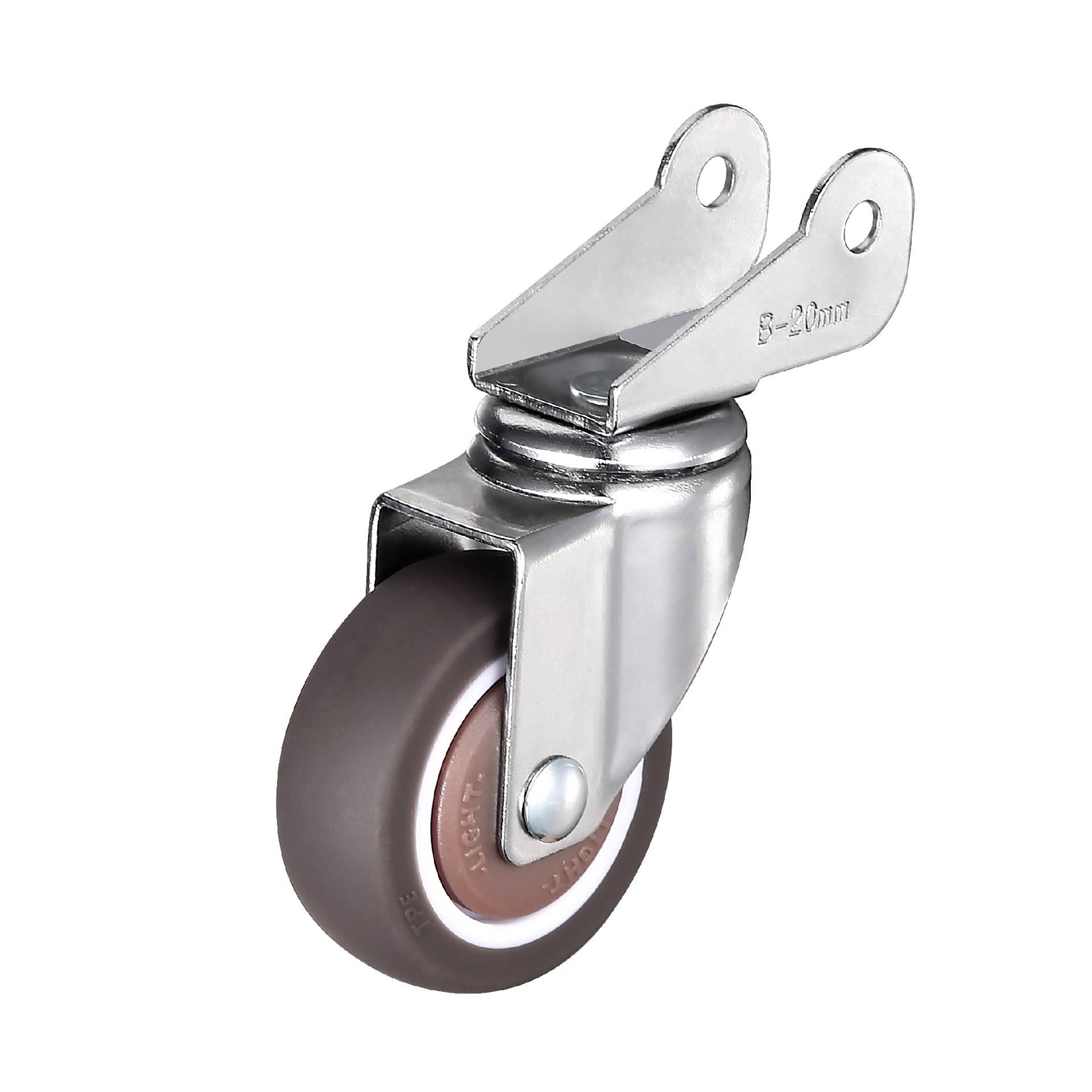

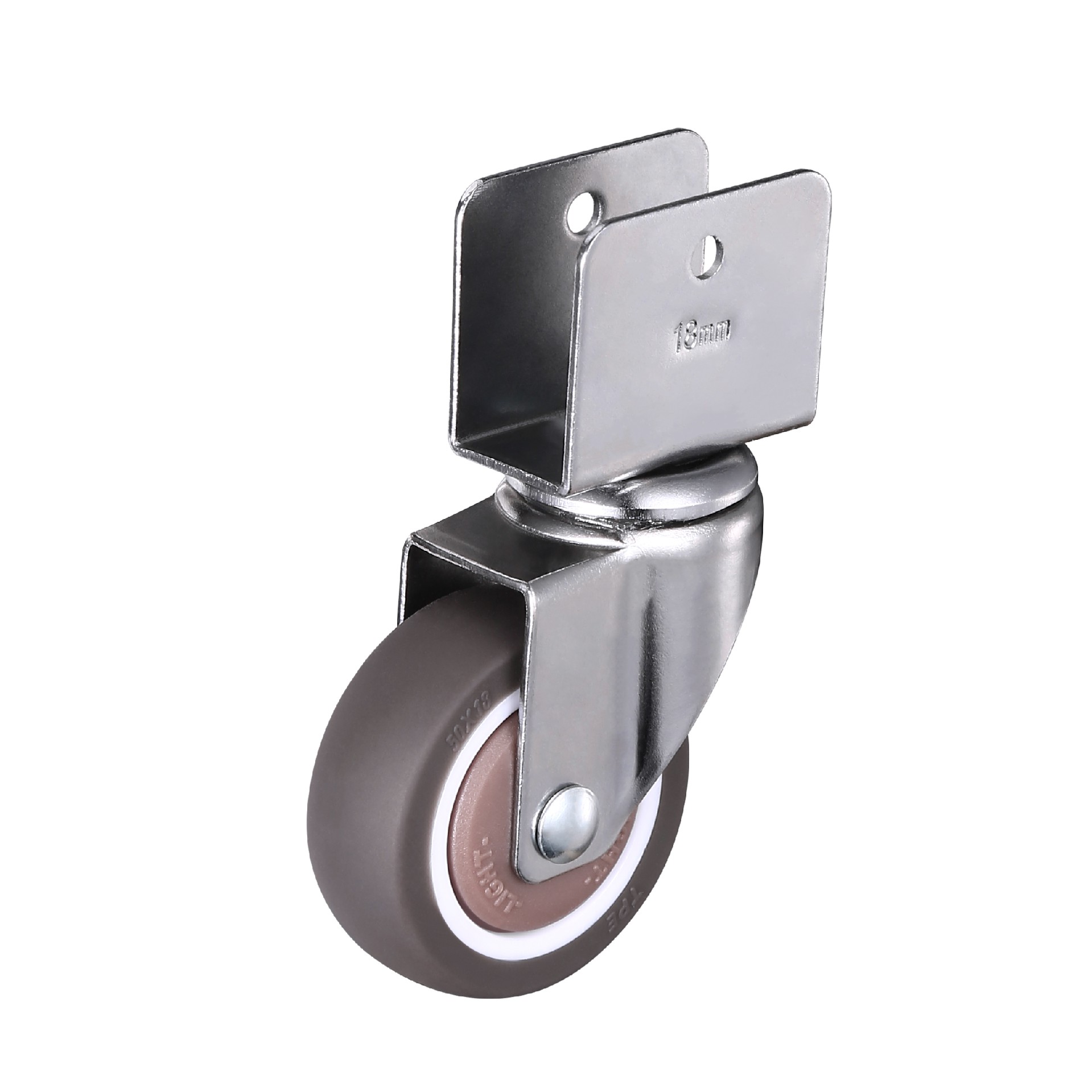

| 尺寸 | 安裝方式 | 夾板口 (W) mm | 夾板 (AxB) mm | 孔位置尺寸 (E) mm | 孔尺寸 (d) mm |
1.5寸 2寸 | U型夾板 | 16.5 | 40x31.5 | 23.5 | 5.2 |
| 18.5 | 41x32 | 24.5 | |||
| 20.5 | 28x31.5 | 23.5 | |||
| 25.5 | 40x31 | 23.5 |

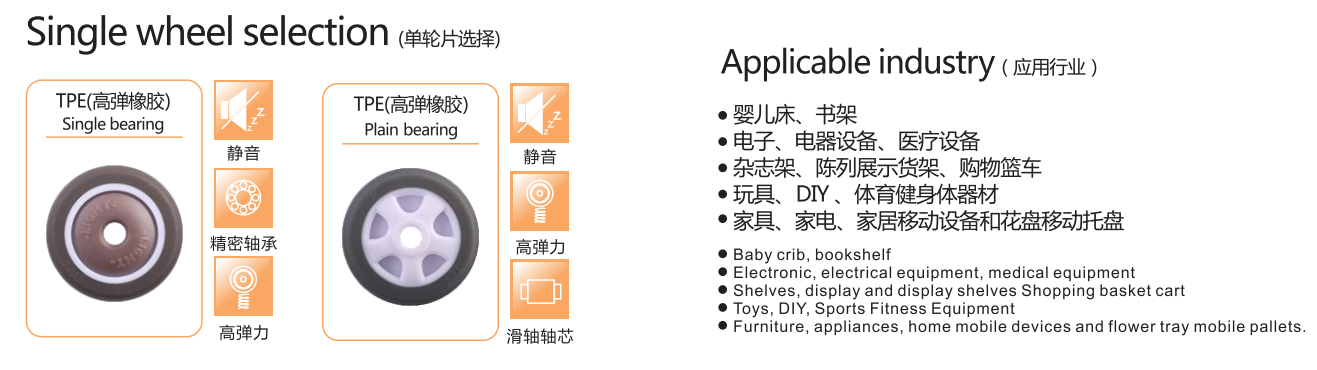

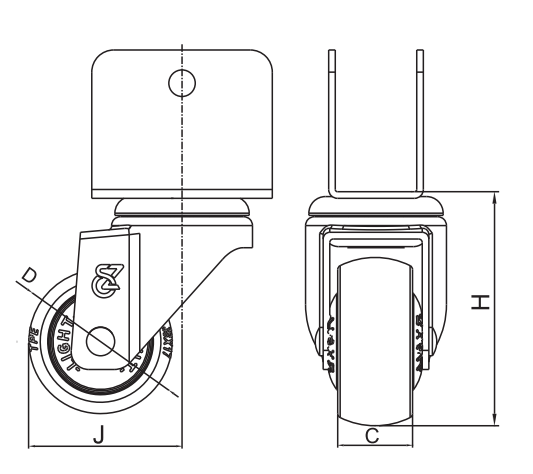

| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Radius (mm) | Wheel Width (mm) | Splint width (mm) | Bearing |
| 產(chǎn)品 | 型號 | 輪徑 | 承重 | 安裝高度 | 輪子轉(zhuǎn)動半徑 | 輪寬 | 夾板口寬 | 表面處理/輪軸 |
GTPE/KTPE | 71-C6-033G38-16 | 38 | 22 | 54.5 | 37 | 17 | 16 | 鍍藍鋅/滑軸 |
| 71-C6-033G50-16 | 50 | 25 | 66.5 | 45 | 18 | |||
| 71-C6-031K38-16 | 38 | 23 | 54.5 | 37 | 17 | 鍍鉻/單軸承 | ||
| 71-C6-031K50-16 | 50 | 26 | 66.5 | 45 | 18 | |||
GTPE/KTPE | 72-Z6-033G38-18 | 38 | 22 | 54.5 | 37 | 17 | 18 | 鍍藍鋅/滑軸 |
| 72-Z6-033G50-18 | 50 | 25 | 66.5 | 45 | 18 | |||
| 72-Z6-031K38-18 | 38 | 23 | 54.5 | 37 | 17 | 鍍鉻/單軸承 | ||
| 72-Z6-031K50-18 | 50 | 26 | 66.5 | 45 | 18 | |||
GTPE/KTPE | 72-Z6-033G38-20 | 38 | 22 | 54.5 | 37 | 17 | 20 | 鍍藍鋅/滑軸 |
| 72-Z6-033G50-20 | 50 | 25 | 66.5 | 45 | 18 | |||
| 72-Z6-031K38-20 | 38 | 23 | 54.5 | 37 | 17 | 鍍鉻/單軸承 | ||
| 72-Z6-031K50-20 | 50 | 26 | 66.5 | 45 | 18 | |||
GTPE/KTPE | 72-Z6-033G38-20J | 38 | 22 | 54.5 | 37 | 17 | 20 | 鍍藍鋅/滑軸 |
| 72-Z6-033G50-20J | 50 | 25 | 66.5 | 45 | 18 | |||
| 72-Z6-031K38-20J | 38 | 23 | 54.5 | 37 | 17 | 鍍鉻/單軸承 | ||
| 72-Z6-031K50-20J | 50 | 26 | 66.5 | 45 | 18 | |||
GTPE/KTPE | 72-Z6-033G38-25 | 38 | 22 | 54.5 | 37 | 17 | 25 | 鍍藍鋅/滑軸 |
| 72-Z6-033G50-25 | 50 | 25 | 66.5 | 45 | 18 | |||
| 72-Z6-031K38-25 | 38 | 23 | 54.5 | 37 | 17 | 鍍鉻/單軸承 | ||
| 72-Z6-031K50-25 | 50 | 26 | 66.5 | 45 | 18 | |||
GTPE | 72-Z7-033G25-L | 25 | 12 | 41 | 28 | 13 | 33x25 | 鍍藍鋅/滑軸 |
| 72-Z7-033G32-L | 32 | 15 | 47 | 32 | ||||
| 72-Z7-033G38-L | 38 | 23 | 54.5 | 37 | 17 | 39x25 | ||
| 72-Z7-033G50-L | 50 | 26 | 66.5 | 45 | 18 | |||
KTPE | 72-Z7-031k25-L | 25 | 12 | 41 | 28 | 13 | 33x25 | 鍍鉻/單軸承 |
| 72-Z7-031k32-L | 32 | 15 | 47 | 32 | ||||
| 72-Z7-031k38-L | 38 | 23 | 54.5 | 37 | 17 | 39x25 | ||
| 72-Z7-031k50-L | 50 | 26 | 66.5 | 45 | 18 |
